358 anti climb Welded mesh Fence
358 anti climb Welded mesh Fence is a much more secure barrier than the common 358 mesh fence. It has the same wire thickness as 358 fence, but the size of mesh opening pattern is smaller. The intruder can not climb up with fingers and toes, and conventional bolts or wire-cutters have no way to cut the anti climb fencing.
Anti-climbing fence has more rigid double vertical wire welding structure, which makes it difficult to cross. Anti-climb rigid mesh fencing has the advantages of anti-climbing, anti-cutting, anti-corrosion, and good viewing visibility. Combined with the fence top of razor barbed wire, security fence spikes, or tooth spikes, it becomes a ideal high-security fencing for high-end applications, such as, prisons, military and power facilities.
High security anti-climbing fence features：
1.Good viewing visibility, it is a type of high security clear view fencing.
2.Welded well at each intersection.
3.Intrusion resistant, with extremely strong double vertical wire design.
4.Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
5.Corrosion resistant with zinc aluminum alloy and PVC powder coating.
6.Surface finish after welding, every weld-point are protected well.
7.High strength with fully integrated with posts and anti-tamper fixings.
8.Fence security toppings are optional.
9.Easy for installation and free maintenance.
10. There are 5 year warranty.
Table-1: anti-climb mesh fencing panels and posts specifications: | ||||
Fence height (m) | Panel size | Fence Post | Clamp Bar | Inter or corner |
2.0 | 2007 mm × 2515 mm | 2700 × 80 × 80 × 3 mm | 2007 × 60 × 5.00 mm | 7 or 14 |
2.4 | 2410 mm × 2515 mm | 3100 × 80 × 80 × 3 mm | 2400 × 60 × 5.00 mm | 9 or 18 |
3.0 | 3010 mm × 2515 mm | 3800 × 100 × 100 × 3.0 mm | 2997 × 80 × 6.00 mm | 11 or 22 |
3.6 | 3610 mm × 2515 mm | 4500 × 100 × 100 × 3.5 mm | 3607 × 100 × 7.00 mm | 13 or 26 |
Note: anti-climb mesh fencing can be custom ordered to measure. | ||||

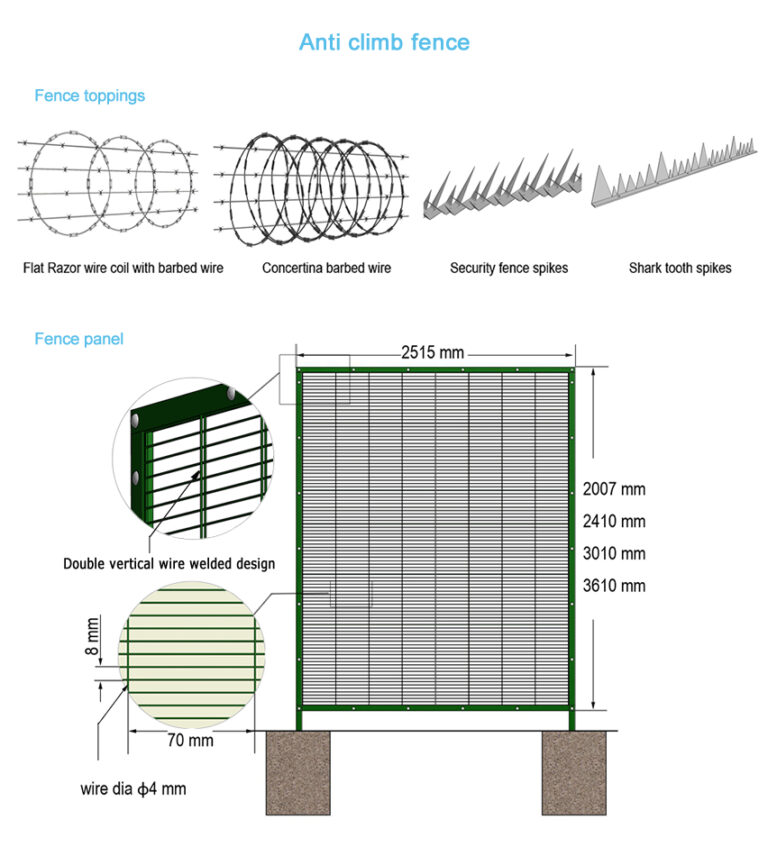

358 security mesh fence drawing:

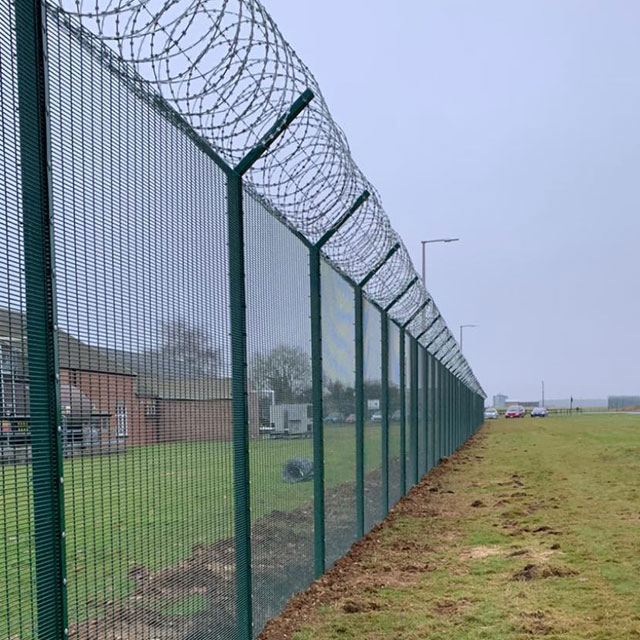

Fence security toppings: Flat razor wire coils with barbed wire, concertina barbed wire, security fence spikes, or shark tooth spikes (coating according to the anti-climb fence panels).
Shark tooth spikes: width 35 mm, long teeth up to 58 mm.
Security anti-climb fence spikes:
Plate thickness: 2.0 mm
Base width: 65 mm.
Spike length: 35 mm short spikes, 70 mm long spikes.
Spikes pitch: 70 mm.
Razor wire
Style: flat razor wire or concertina razor wires.
Barb length: short barb or long barb.
Material: galvanised steel, stainless steel (for extremely corrosive environments).
Wire: high tensile 25 mm, aluminum/zinc wire, breaking load 7700 N.
Coil Diameter: 600 mm, 750 mm.
Number of loops: 55.
Extent length: 7.5 m.
Barbed wire
Galvanized and PVC coated barbed wire with 2 strands and 4 points.
Gauge of strand and barb wire: 11 gauge.
Barbs spacing: 3 inch.
Frequently Asked Questions
Q:Can I order a small sample?
Yes, we can supply small free sample, but you need pay the transport cost. If you need other requests beyond, just contact our sales team.
Q:What's the delivery time of your products?
Usually, it takes about 20-30 days after receiving the advance payment to send out the goods by sea or air.
Q:How to make 358 mesh fence more theft-proof?
Use the Anti-Tamper Fixings – Security bolts (shear-head for anti-theft)
Install the concertina razor wire on top– Deters thieves and alerts security.
Install the electric wire on top – Deters thieves and alerts security.
Concrete Foundations – Prevents digging underneath.
Q:Is black color 358 mesh fencing popular?
Yes, black color 358 mesh fencing is highly popular, especially for modern security, industrial, and high-end residential applications. Its sleek, aggressive appearance provides both deterrence and aesthetic appeal.
Q:Can you provide bend sides and top 358 mesh fencing?
Yes! top and bottome bends, 2×70 degree bend for two sides, This design is widely used in high-security prisons, military sites, and critical infrastructure due to its formidable deterrent effect.
